How to Read a Tape Measure
A tape measure tells you more than whole inches, once you know how to read it. This guide covers the sliding hook and the small lines along the blade.
Steps

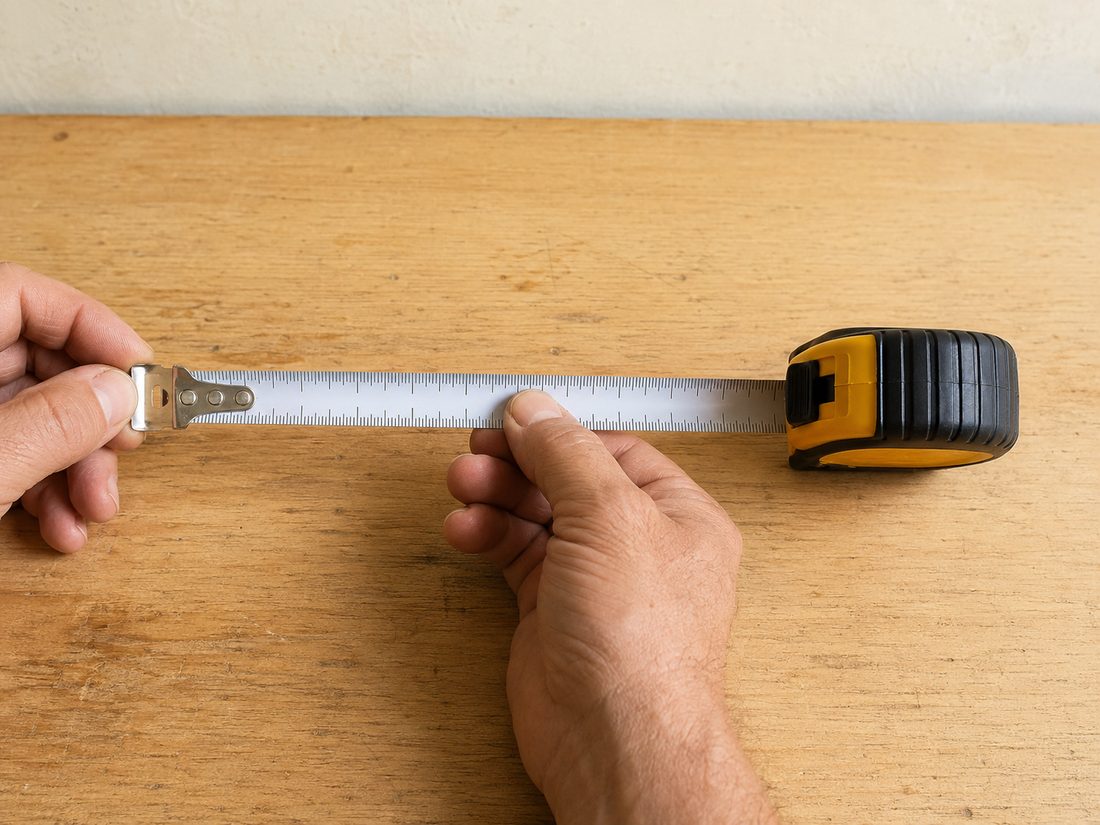

Check the sliding hook
The metal hook on the end of the blade moves back and forth a little, and that is not a defect. It slides by exactly its own thickness, about 1/16 inch. It pulls out when you measure the outside of something and pushes in when you measure an inside space, so zero stays true both ways.
- The wobble is meant to be there: a hook that rattles looks broken, and people try to tighten it. Leave it alone. That small amount of play is exactly the thickness of the hook itself. It is what lets the same tape read zero correctly whether you are hooking the end over an edge or pushing it into a corner.
Read the marks by their length
With the hook understood, look along the blade itself. On an imperial tape, the length of a mark tells you the fraction it stands for. The longest numbered lines are whole inches. The second-longest line is 1/2 inch. The third-longest are 1/4 and 3/4. The fourth-longest are the 1/8 marks. The shortest lines of all are 1/16 inch.
- Each shorter mark halves the one before: that is the whole pattern in one line. Whole inch, then 1/2, then 1/4, then 1/8, then 1/16, with the mark getting shorter at every step. You do not need to count tiny lines. Judge the height of the mark and you have the fraction.
Check for finer 1/32 marks
Most tape measures stop at those 1/16 lines. Some go one step further and divide down to 1/32 inch. to see which kind of tape you have.
- How to Check the Smallest Division on Your Tape
- Find two whole inch marks Look for two of the longest numbered lines, next to each other. Those are your whole inches.
- Count the spaces between them Count every space from one inch mark to the next, including the ones made by the shortest lines.
- Sixteen spaces means 1/16 inch A count of sixteen tells you the tape stops at 1/16 inch, like most tapes do.
- Thirty-two spaces means 1/32 inch A count of thirty-two tells you the tape divides once more, down to 1/32 inch.
Tips
- Never try to fix a loose hook. The movement is part of how the tape works, and tightening it would make your outside and inside measurements wrong.
- When someone reads you a measurement off their own tape, it is worth knowing how fine their tape goes. Most stop at 1/16 inch, but a 1/32 tape can give an answer yours has no mark for.
- Do not memorise the numbers along the blade. Read the height of the mark instead. The same longest-to-shortest pattern works anywhere on any imperial tape.
Sources
Each step in this guide is drawn from facts stated by several of these pages independently. Sources that did not corroborate anything used here are not listed.
- How to Read a Tape Measure blog.reekon.tools
- How to Read a Tape Measure thetapestore.co.uk
- How to Read a Tape Measure For Beginners - Woodshop Diaries woodshopdiaries.com
- How to Read Tape Measure Easily: Your Guide cancutters.com
- How to Read a Tape Measure: Complete Beginner's Guide hardwaresize.com
- How to Read a Tape Measure: Step-by-Step Guide (2026) - HomeGuide homeguide.com
